Waveshare 2.13inch E-Paper Display Hat, 250x122 Resolution, Supports Black/White 2-Color, for Raspberry Pi Zero/Zero W/Zero WH for pwnagotchi Project

Marque: Waveshare
Socket du CPU: LGA 1151
Appareils compatibles: Ordinateur personnel
Technologie de mémoire RAM: LPDDR2, LPDDR3 ou LPDDR4
Processeurs compatibles: ARM Cortex-A72 (Jetson Nano), Cortex-A53, Cortex-A7, Cortex-A57 (Raspberry Pi)
Plateforme: Linux
Nom de modèle: Waveshare 2.13inch E-Paper Display HAT
Modèle du CPU: Cortex A9
Type de connecteur d'alimentation principal: 24 broche
Nombre de ports USB 2: 2

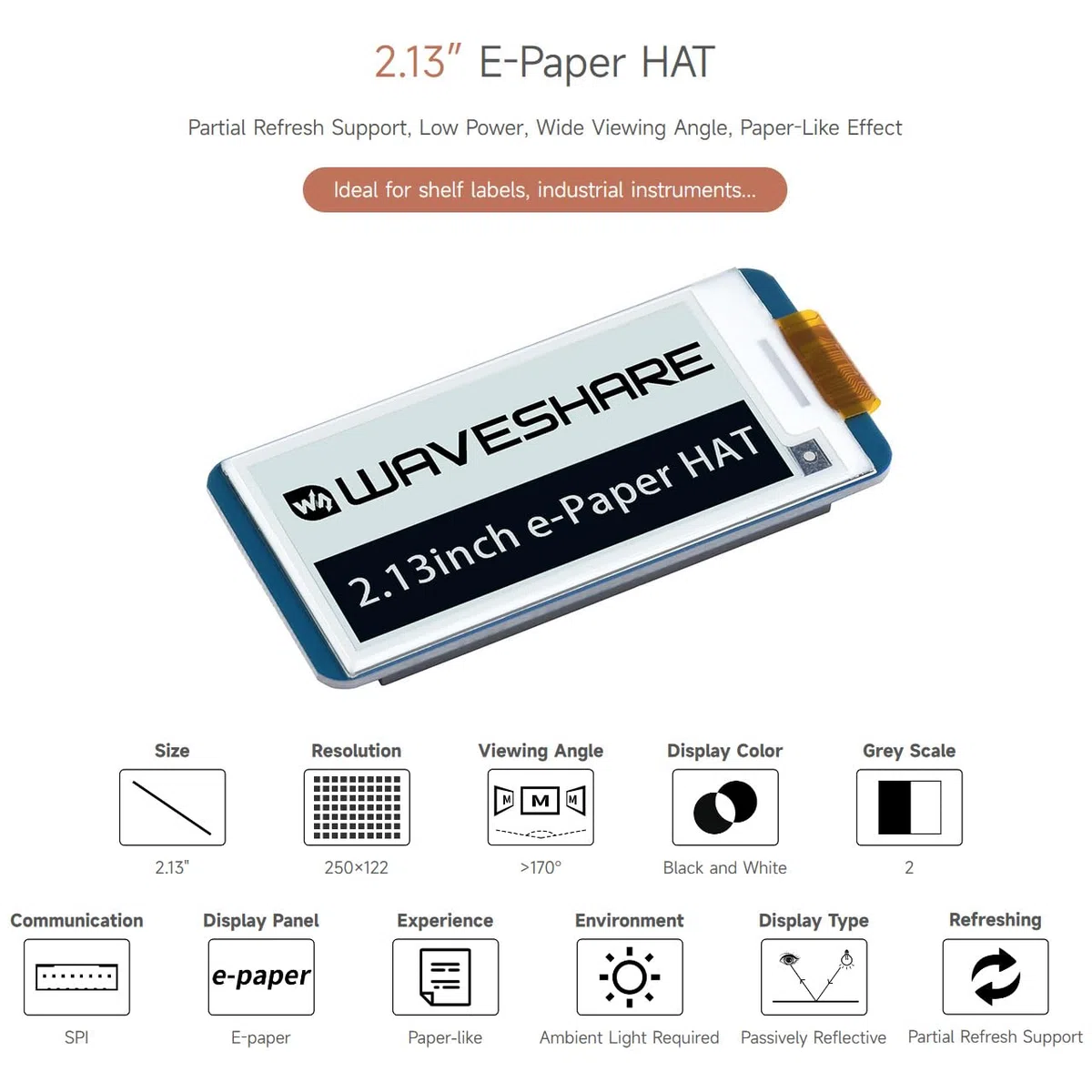

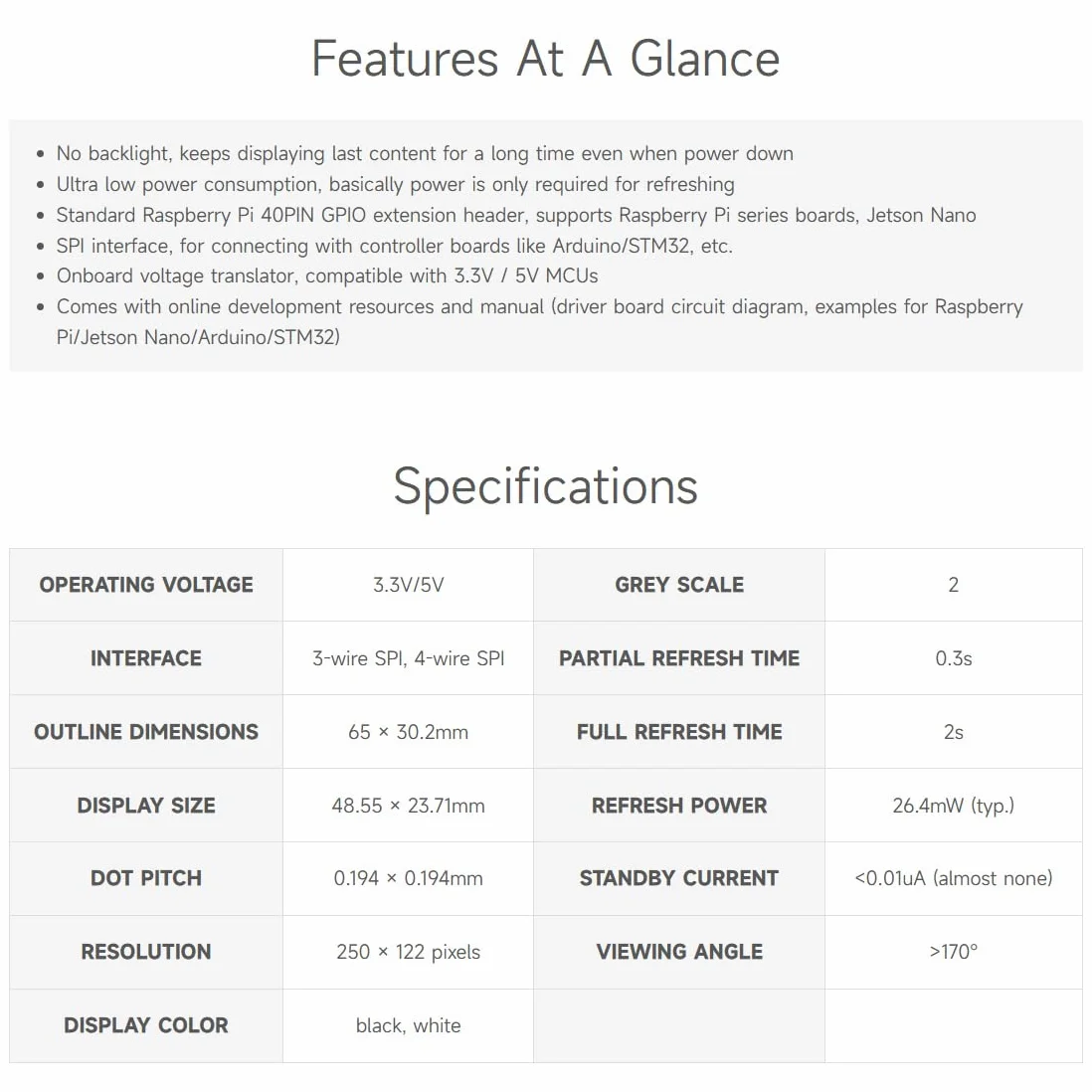

- This is an V4(the latest version) E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

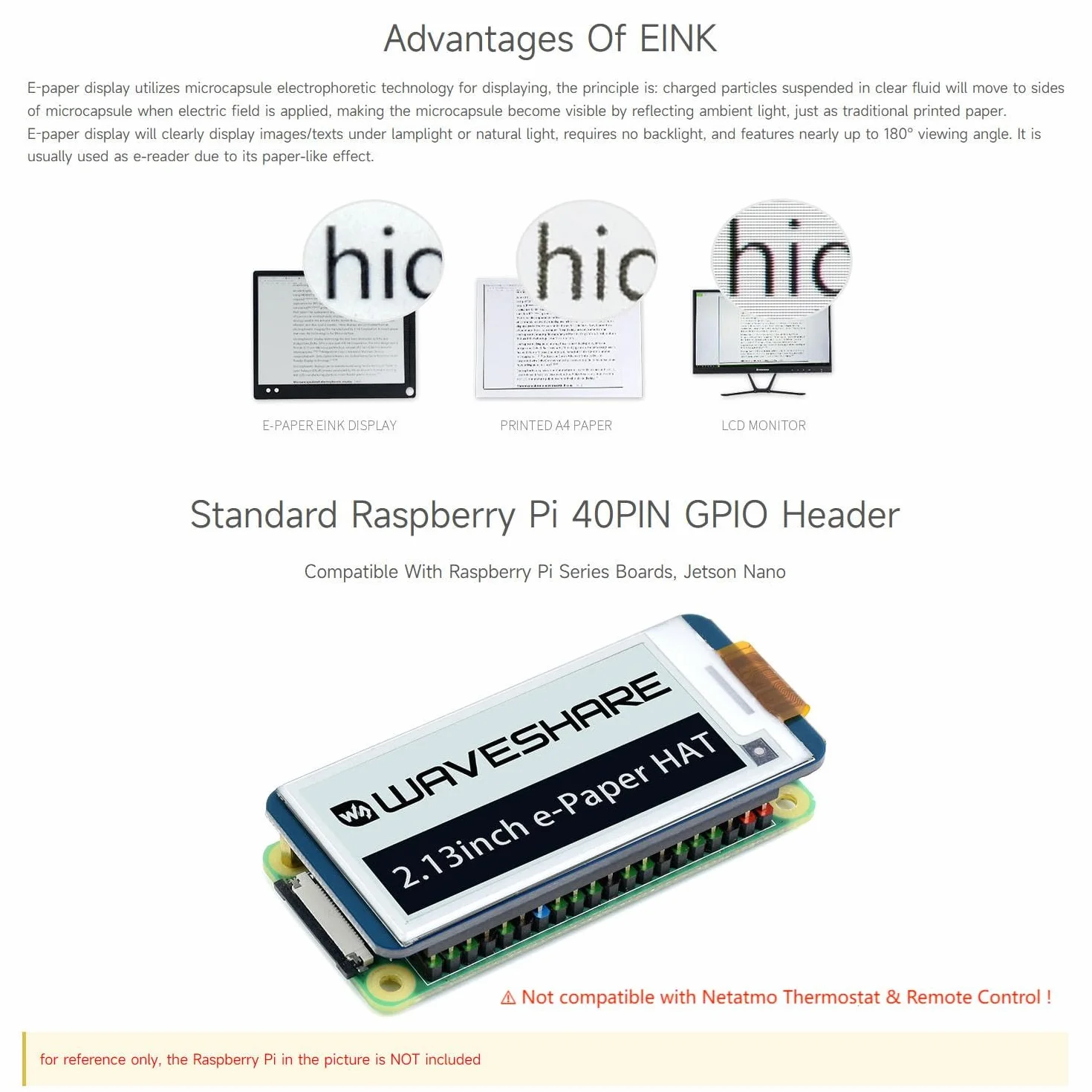

- Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

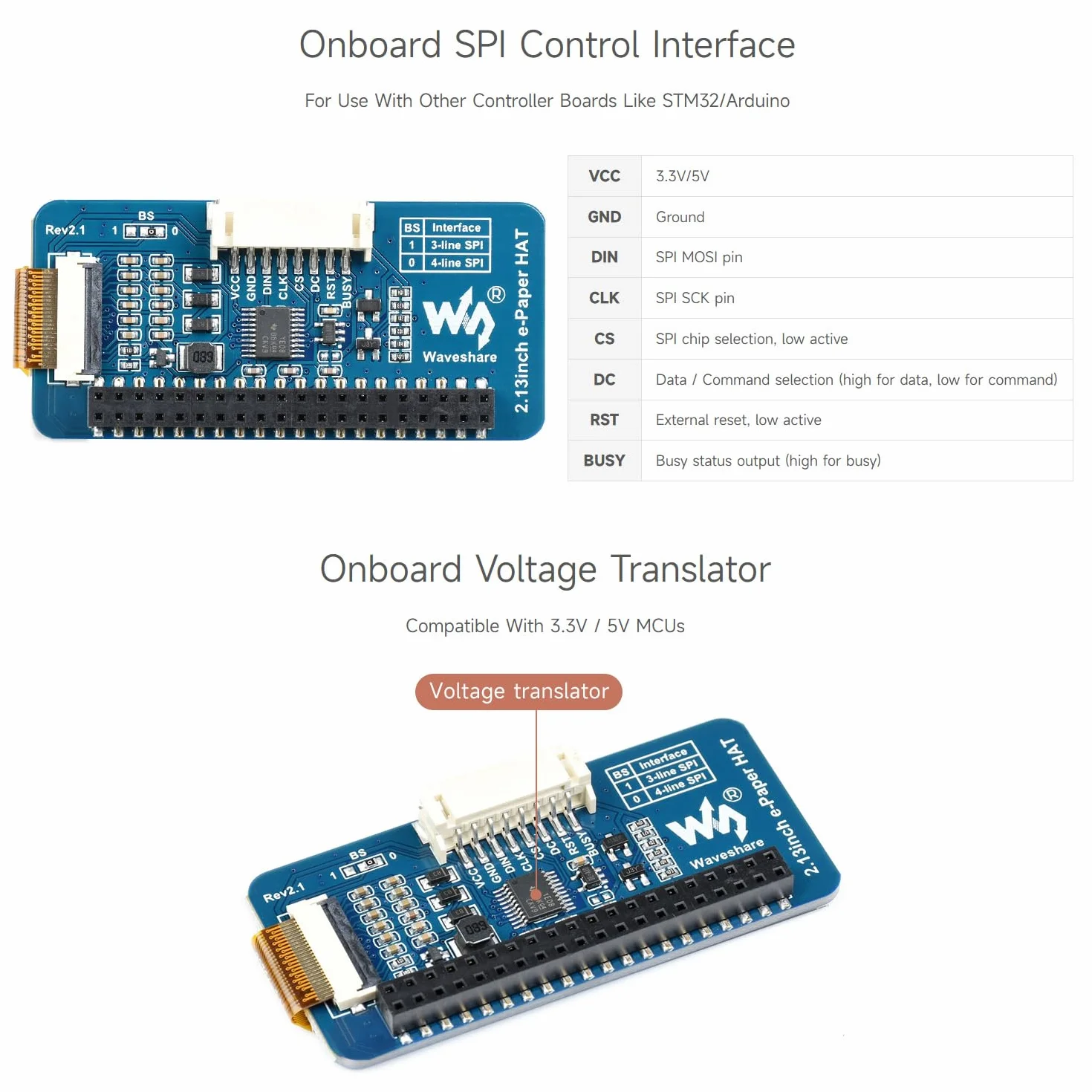

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. SPI interface, for connecting with other controller boards like/Nucleo, etc. Onboard voltage translator, for 3.3V/5V MCUs.
- Provide with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32).
