Waveshare ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, with 1.28inch IPS LCD, 240×240 Resolution, Supports WiFi/BT, Display, with CNC Metal Case

Marque: Waveshare
Nom de modèle: ESP32-S3-LCD-1.28-B
Vitesse du CPU: 240 MHz
Technologie de connectivité: Wi-Fi 802.11 b/g/n, Bluetooth 5 (BLE), USB, GPIO
Composants inclus: ESP32-S3-LCD-1.28-B, Tournevis
Système d'exploitation: FreeRTOS
Norme de communication sans fil: 802.11bgn, Bluetooth
Appareils compatibles: Ordinateur personnel, Smartphone, Capteurs externes
Technologie de mémoire RAM: SRAM, PSRAM
Nombre d’emballages: 1

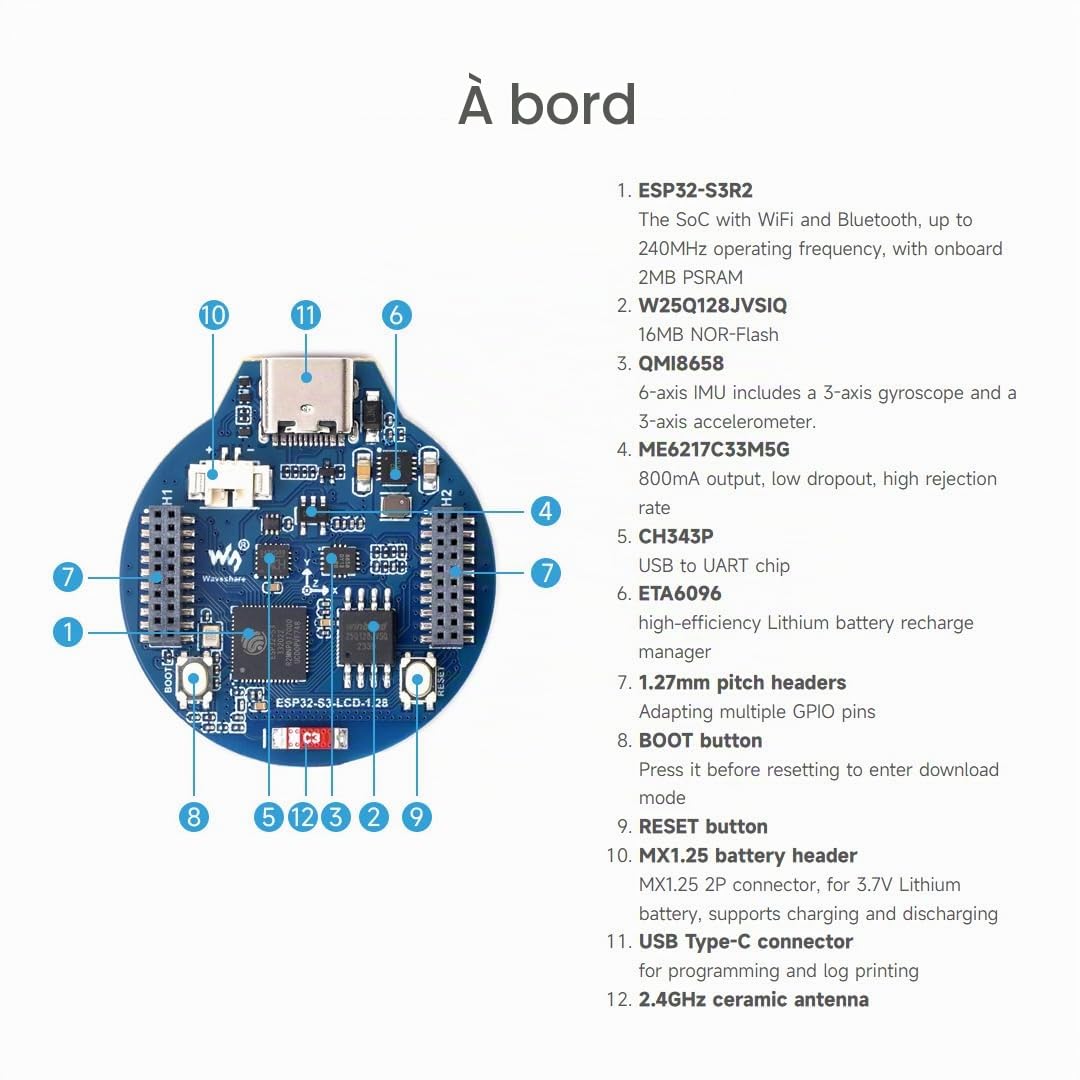

- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 (BLE), with onboard antenna
- Built in 512KB of S-RAM and 384KB ROM, with onboard 2MB PS-RAM and an external 16MB Flash memory. Type-C connector, keeps it up to date, easier to use

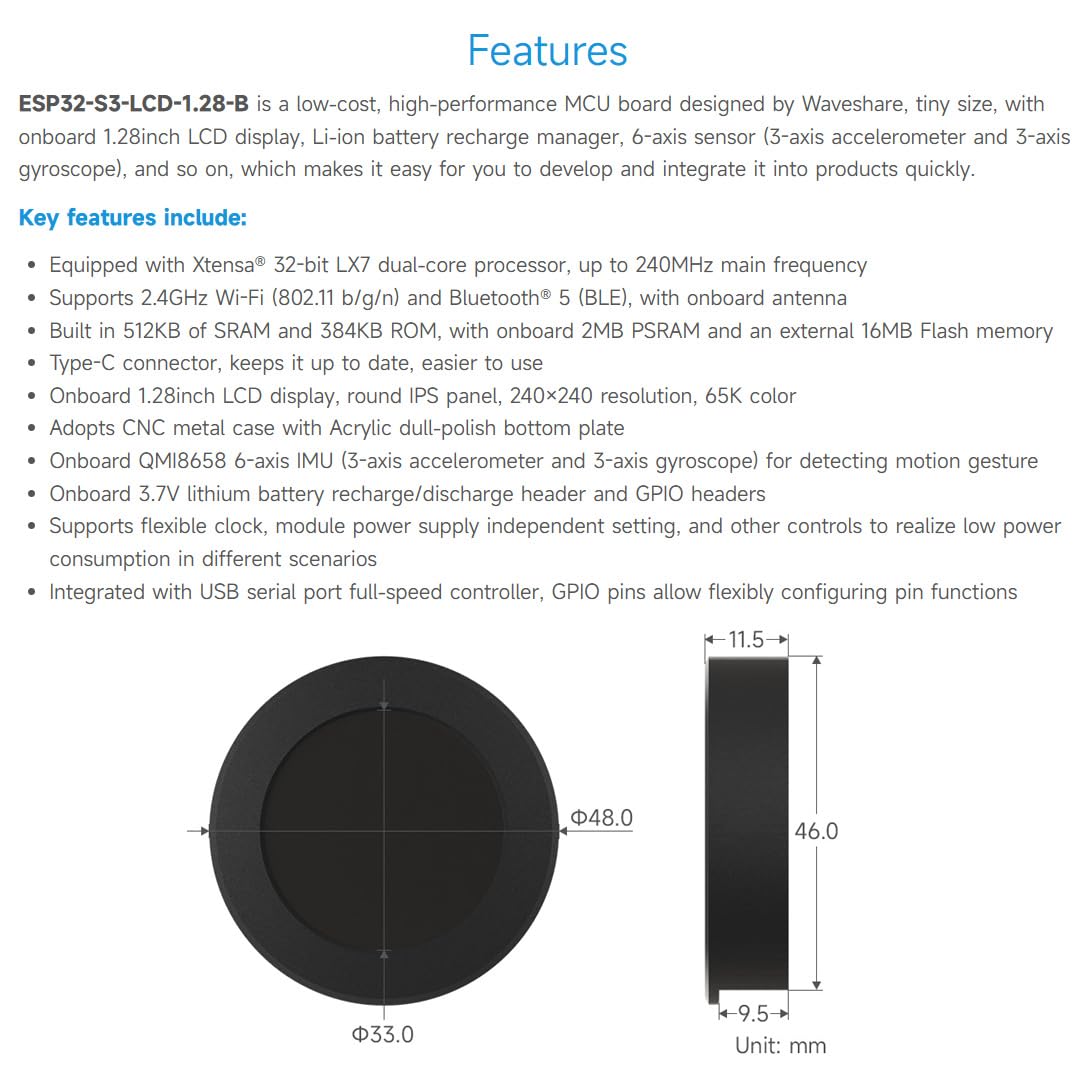

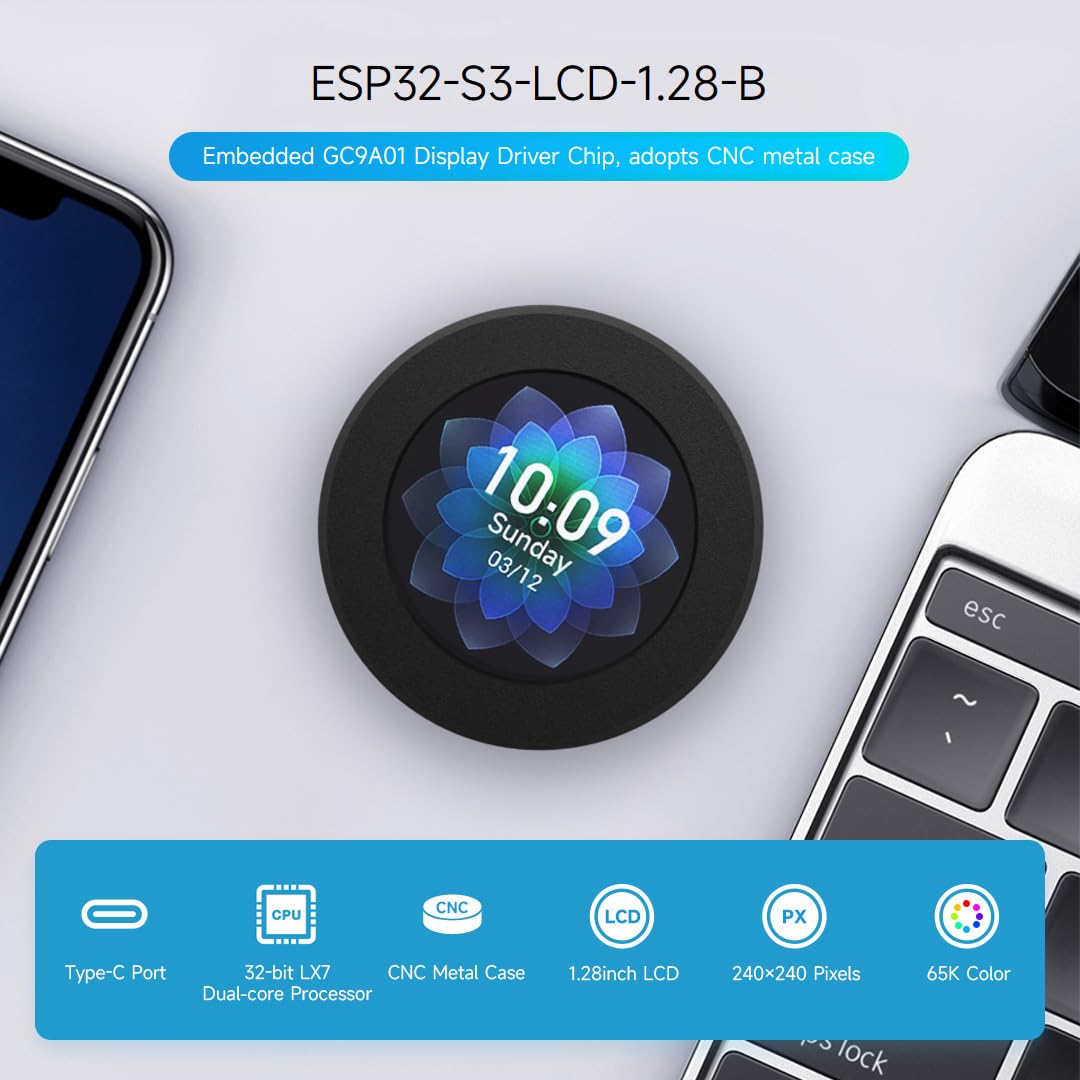

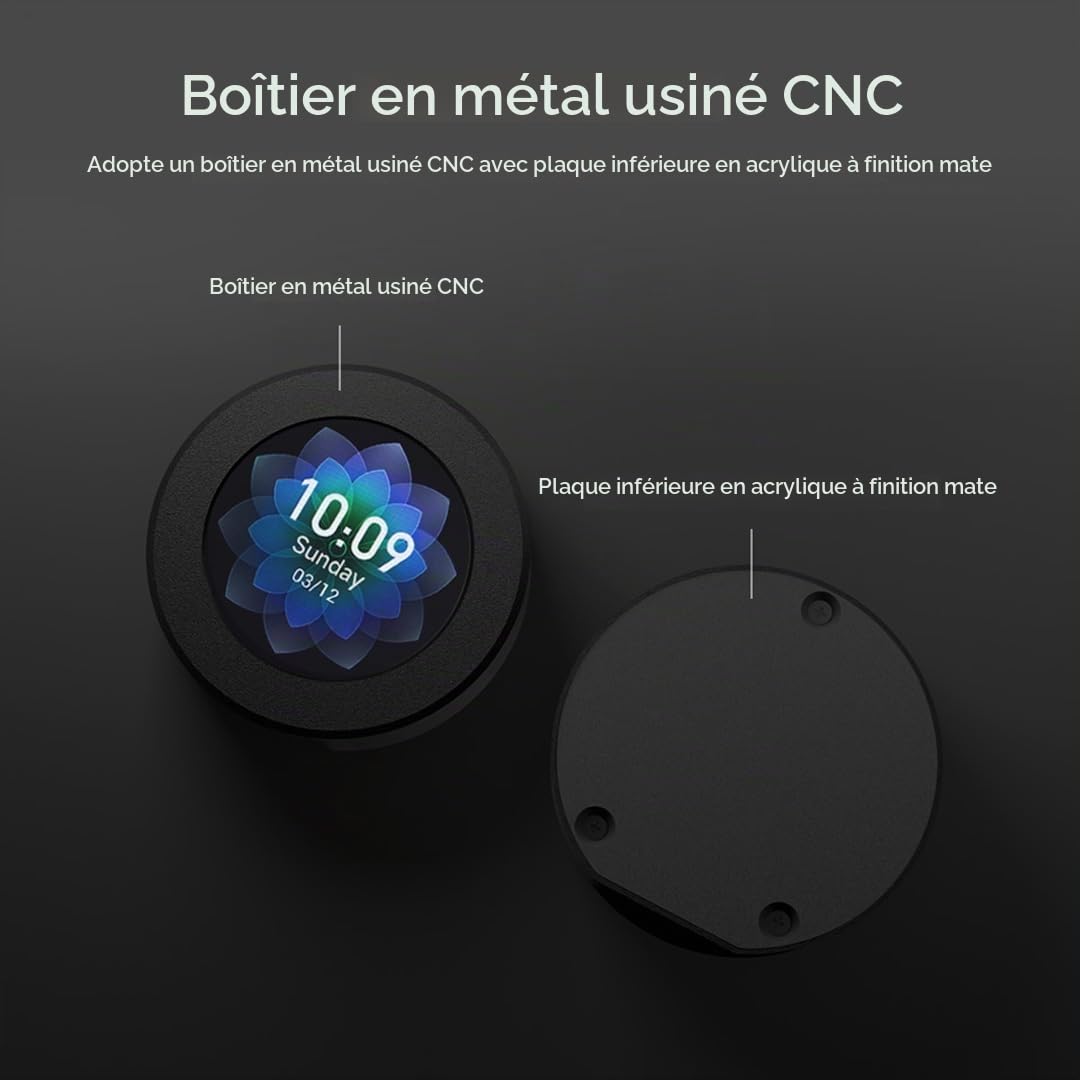

- Onboard 1.28inch LCD display, IPS panel, 240x240 resolution, 65K color. Adopts CNC metal case with Acrylic dull-polish bottom plate
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V lithium batt recharge/discharge header and GPIO headers

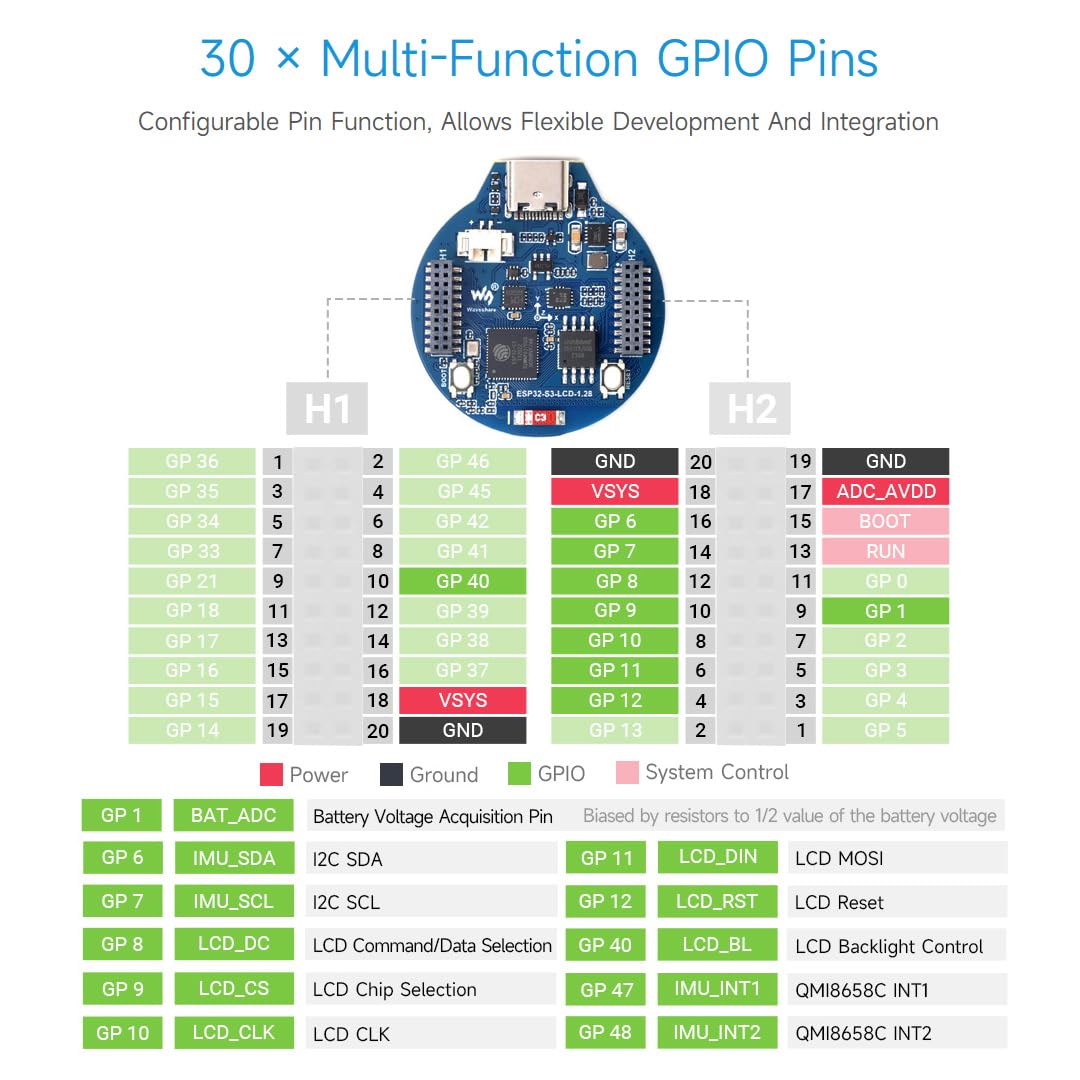

- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
