Waveshare RP2040 MCU Board with 1.28inch Round LCD Accelerometer and Gyroscope Sensor

Marque: Waveshare
Nom de modèle: RS5906
Taille de la mémoire RAM installée: 264 Ko
Capacité de stockage de la mémoire: 2 MB
Modèle du CPU: Raspberry Pi Zero 2 W
Vitesse du CPU: 133 MHz
Technologie de connectivité: USB
Composants inclus: 1.28inch LCD display, Lithium battery recharge/discharge header
Système d'exploitation: Multiple General-Purpose Operating Systems
Fabricant de CPU: ARM

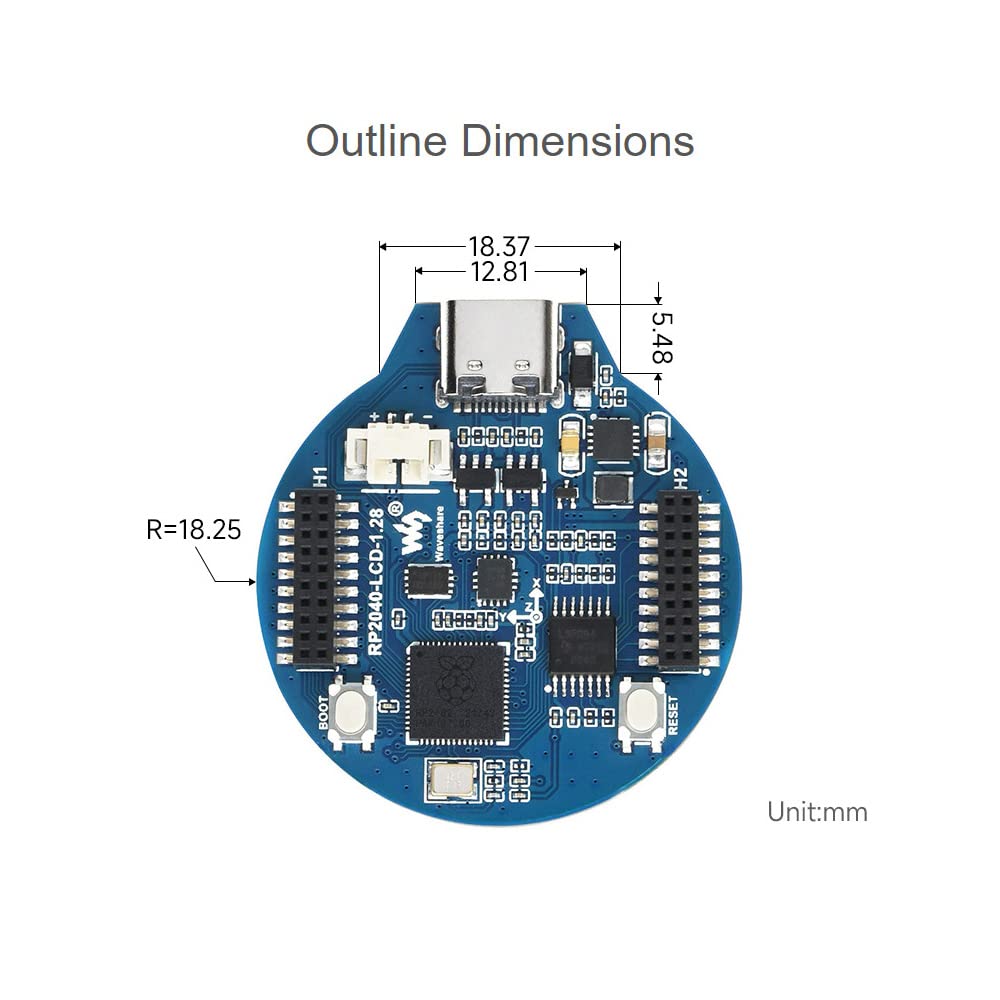

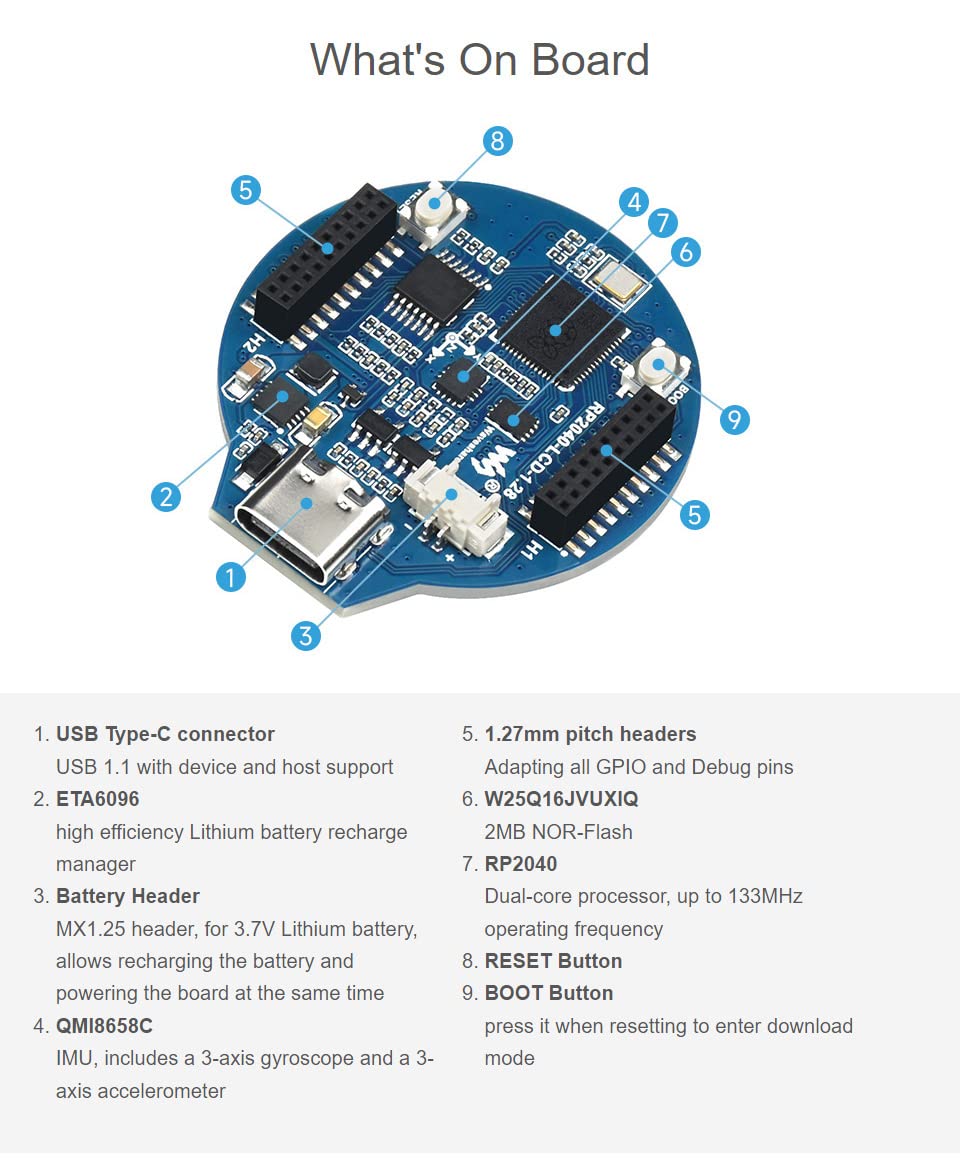

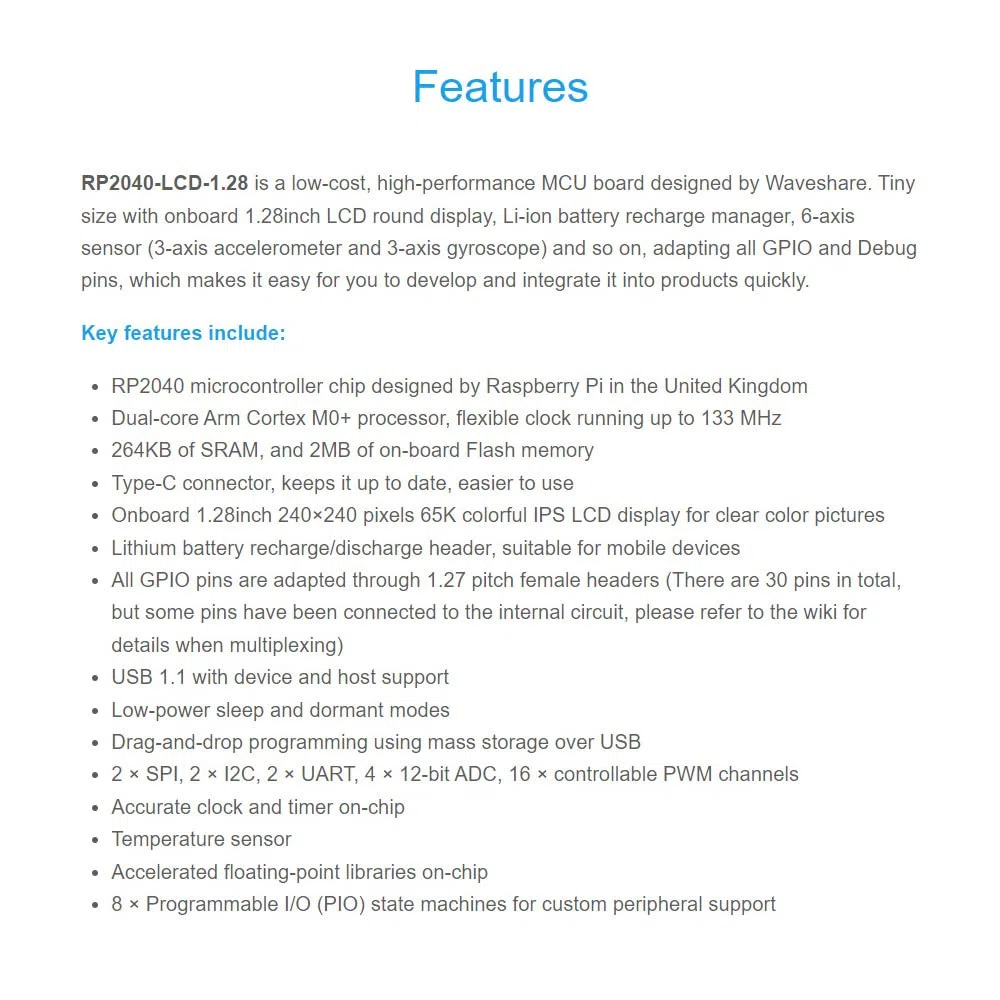

- RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion batt recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz. 264KB of S-RAM, and 2MB of on-board Flash memory.

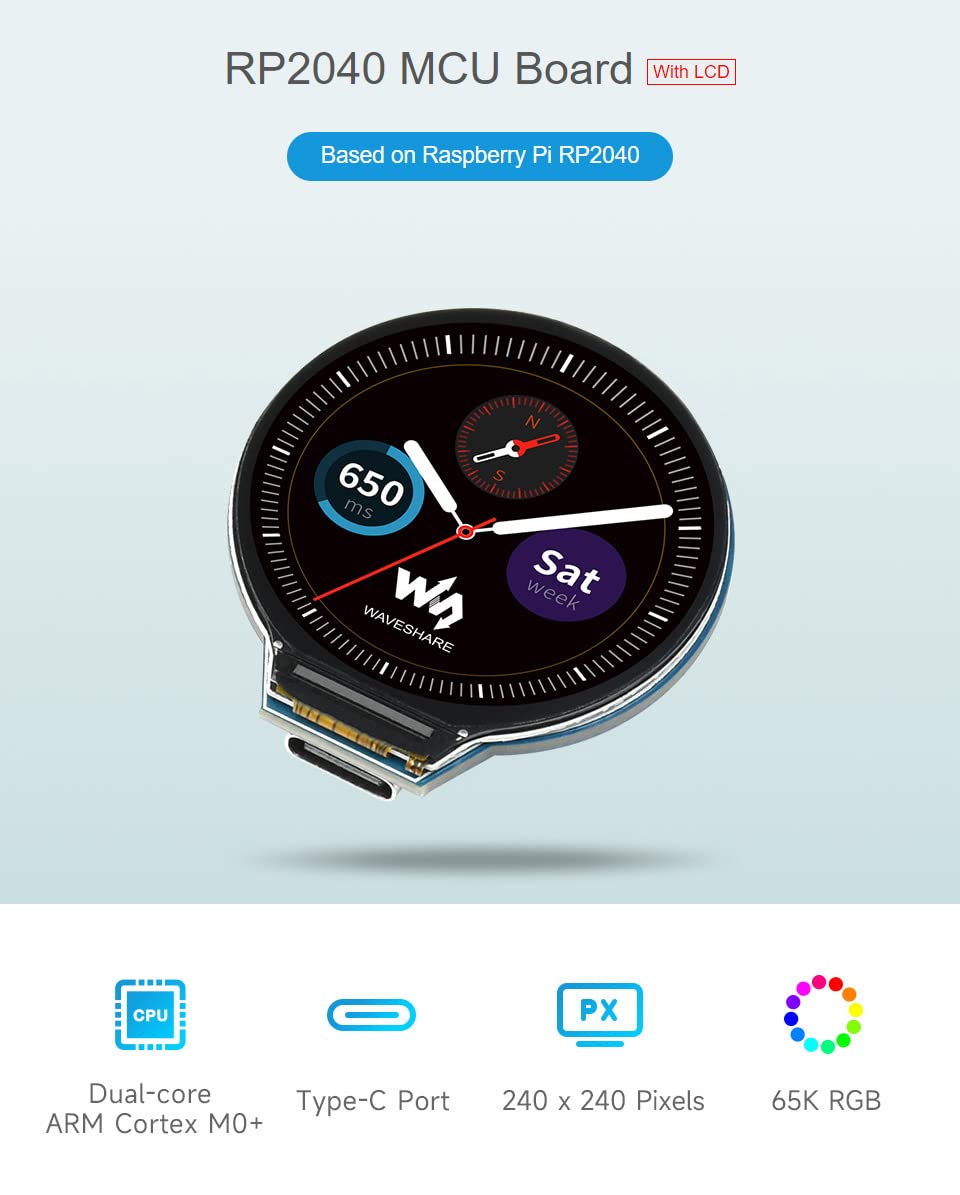

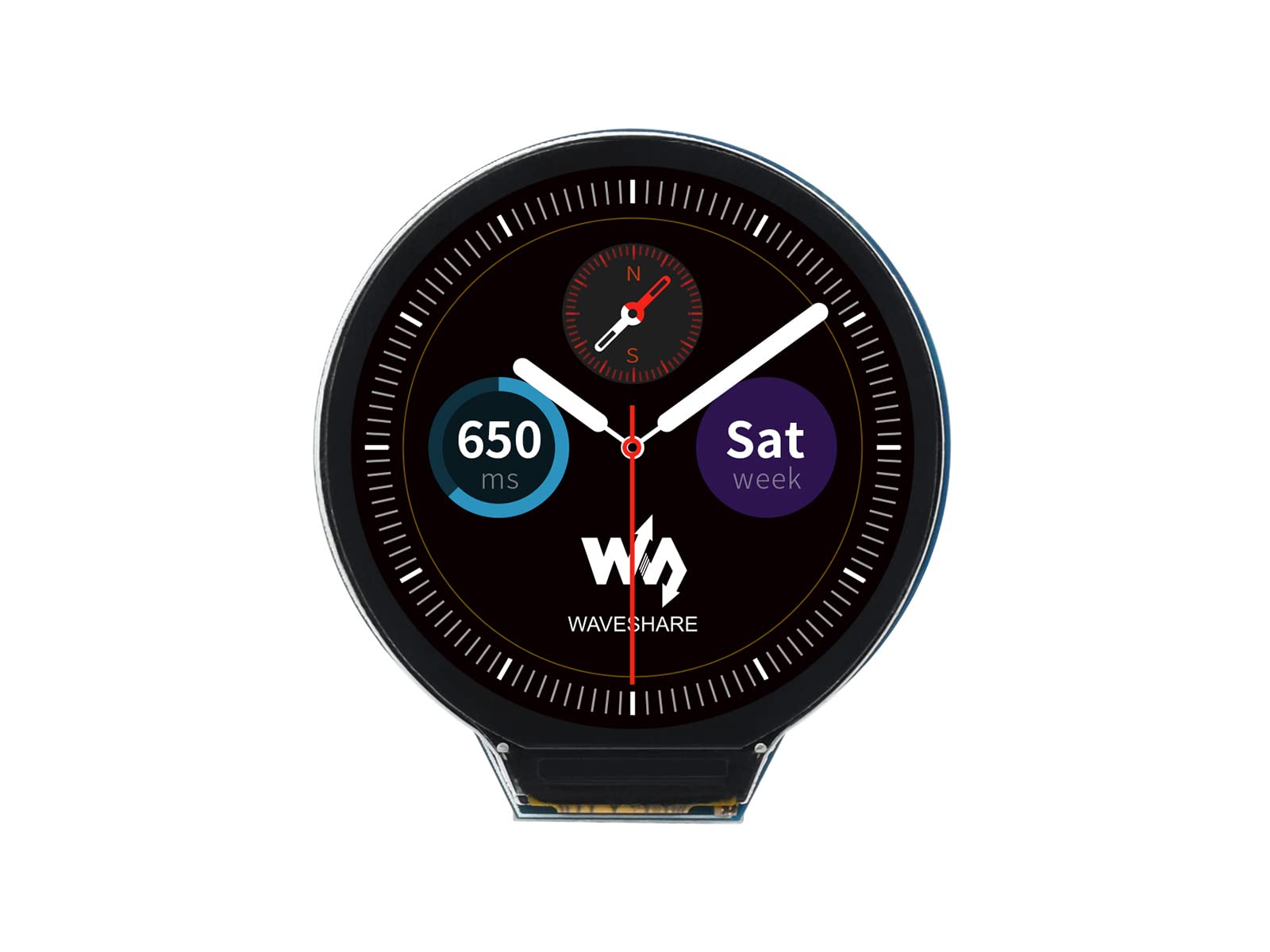

- Type-C connector, keeps it up to date, easier to use. Onboard 1.28inch 240x240 pixels 65K colorful IPS LCD display for clear color pictures. li batt recharge/discharge header, suitable for mobile devices.

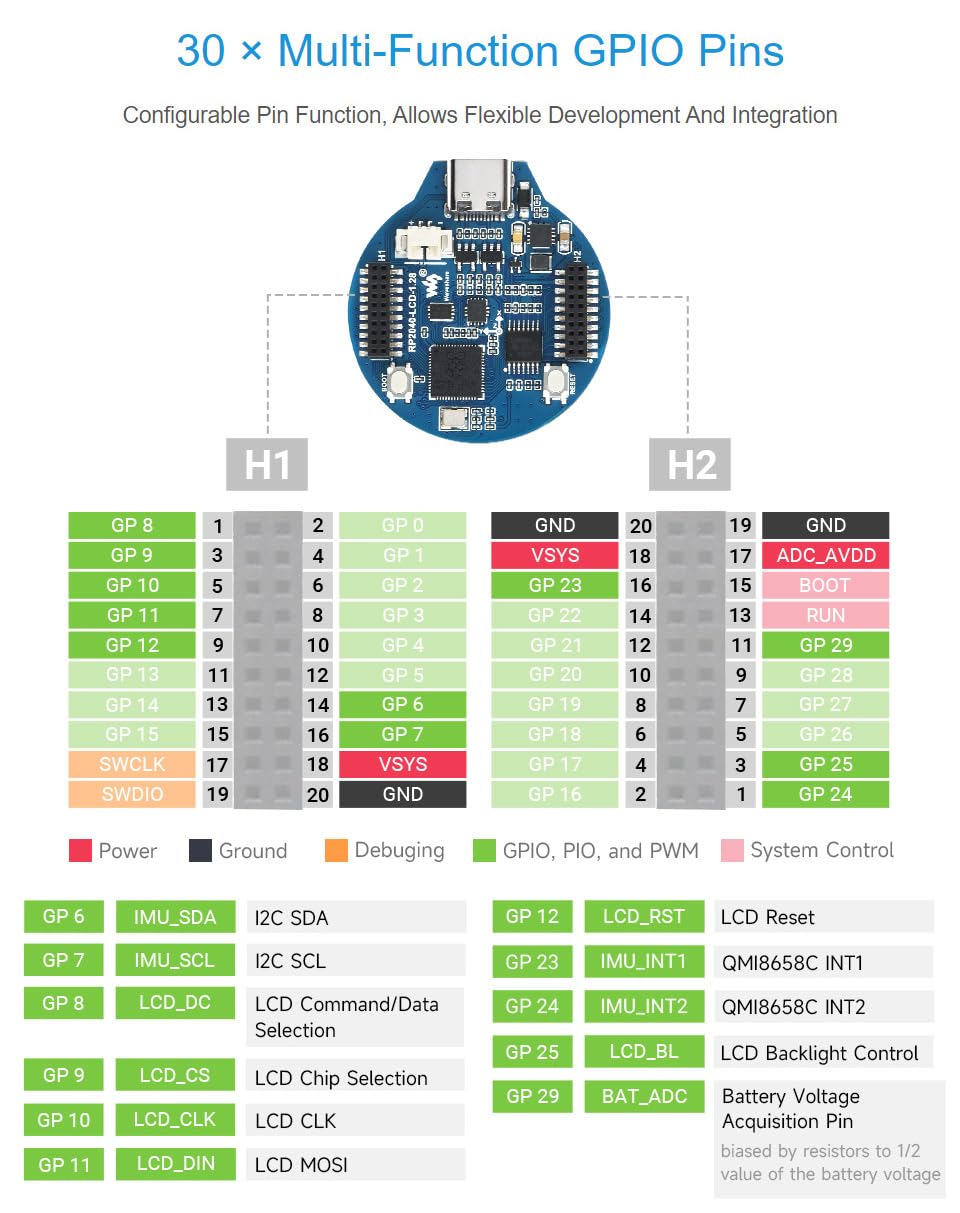

- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.
- 2xSPI, 2xI2C, 2xUART, 4x12-bit ADC, 16xcontrollable PWM channels. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8xProgrammable I/O (PIO) state machines for custom peripheral support.
