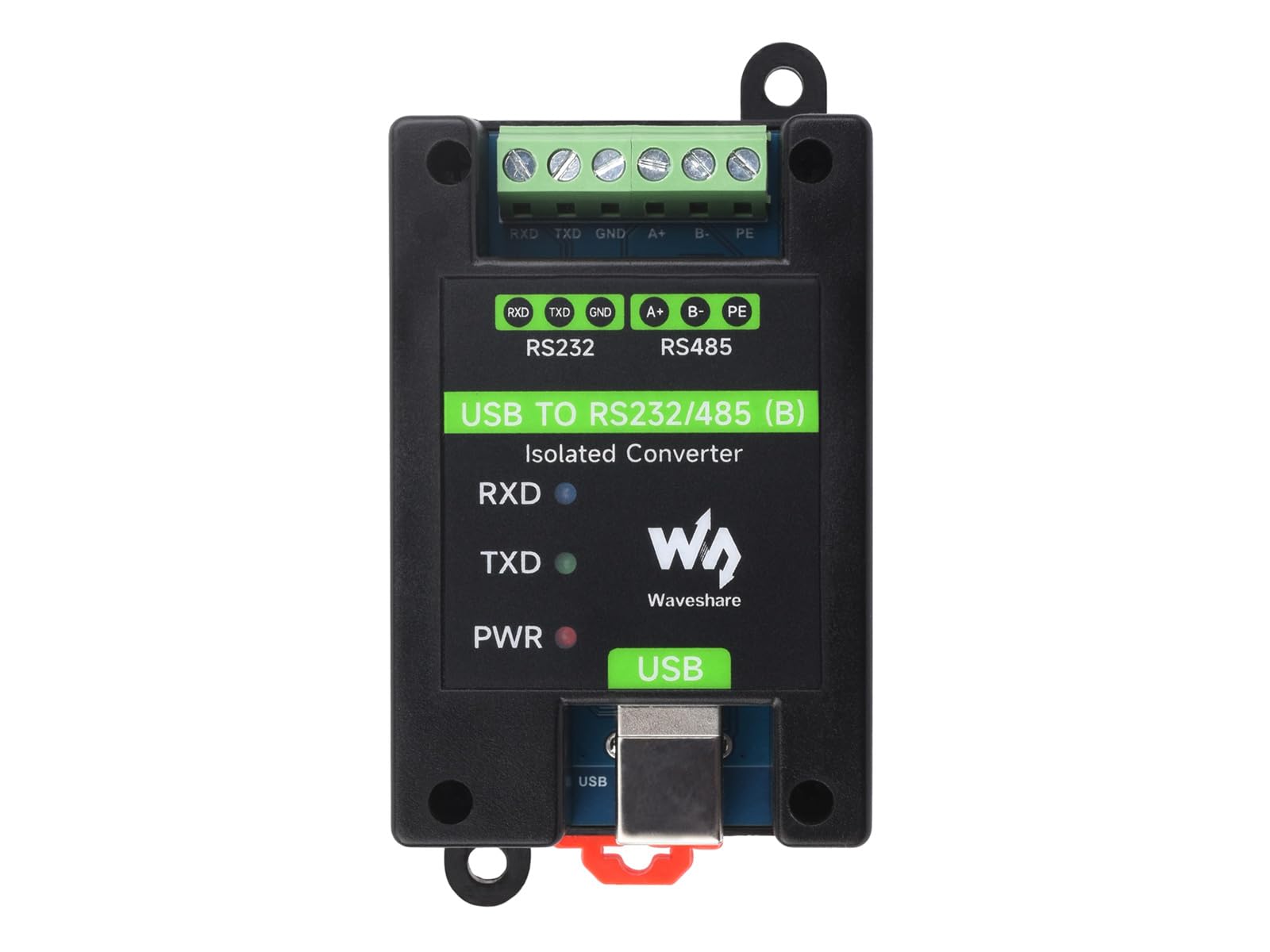

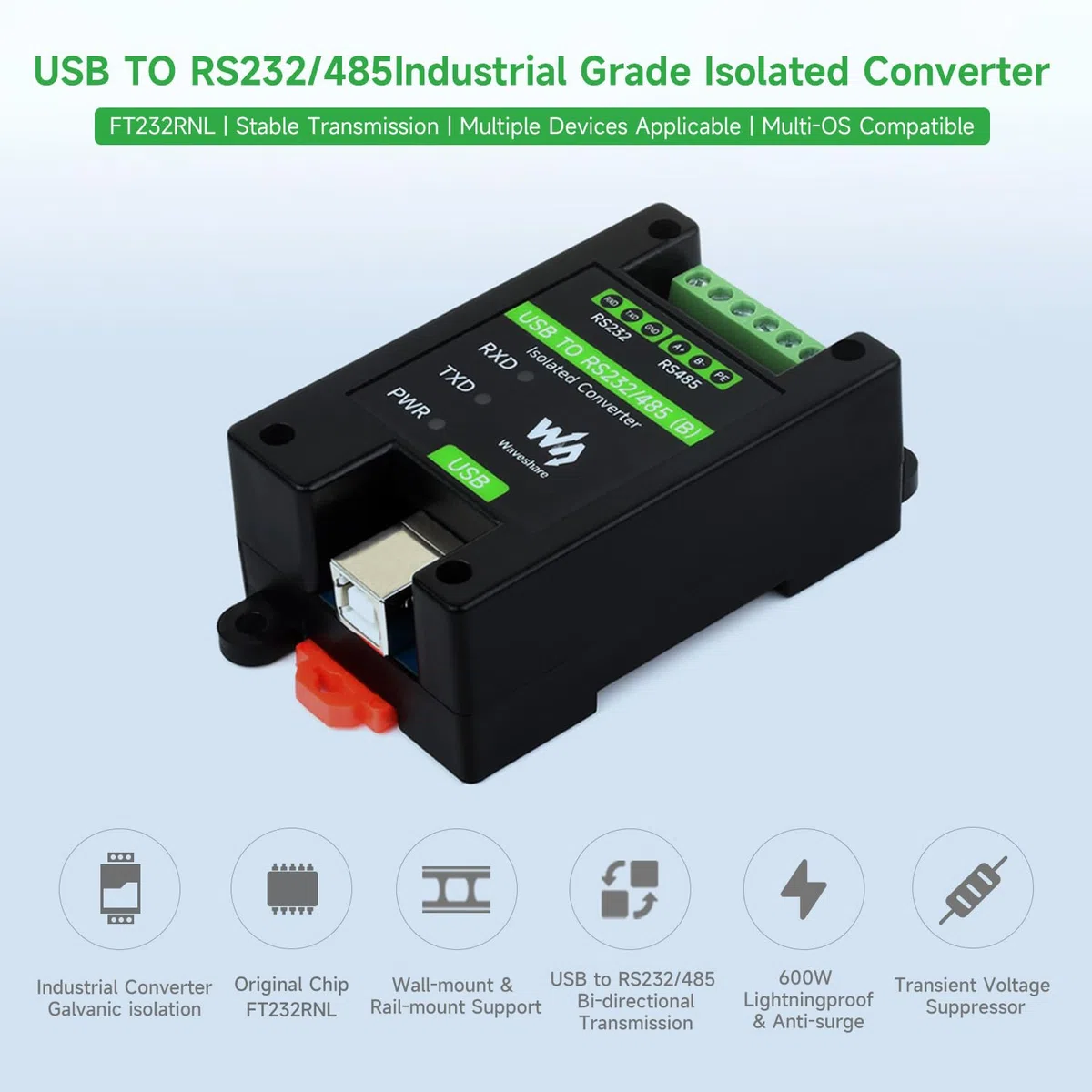

Waveshare USB To RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip, Multiple Protection, Wall-Mount And Rail-Mount Support

Marque: Waveshare
Type de fixation: Montage sur rail DIN
Type d'interface: USB
Appareils compatibles: Ordinateur, Ordinateur portable
Fabricant: Waveshare
Nombre d'articles: 1
Compatibilité maison intelligente: Non compatible maison connectée

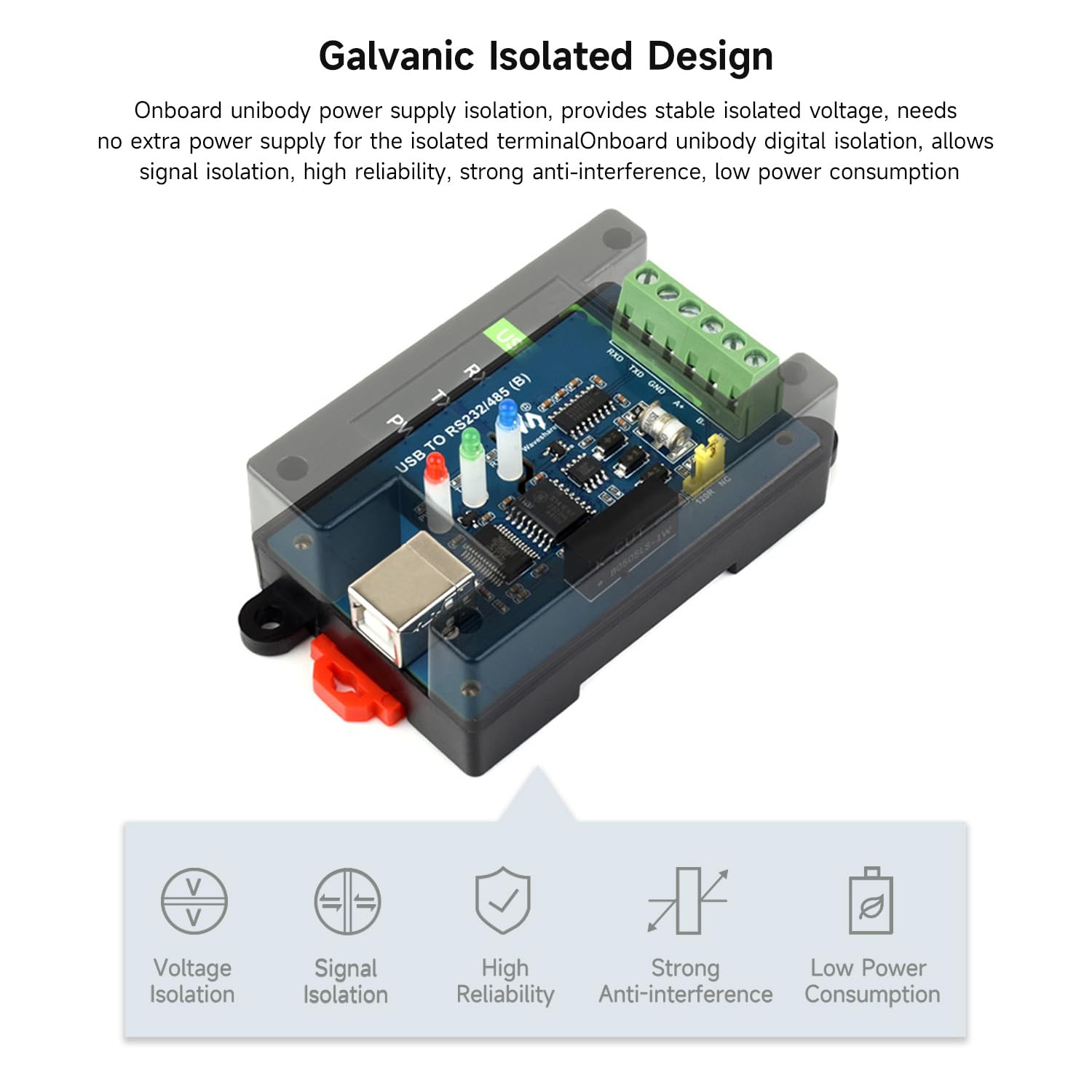

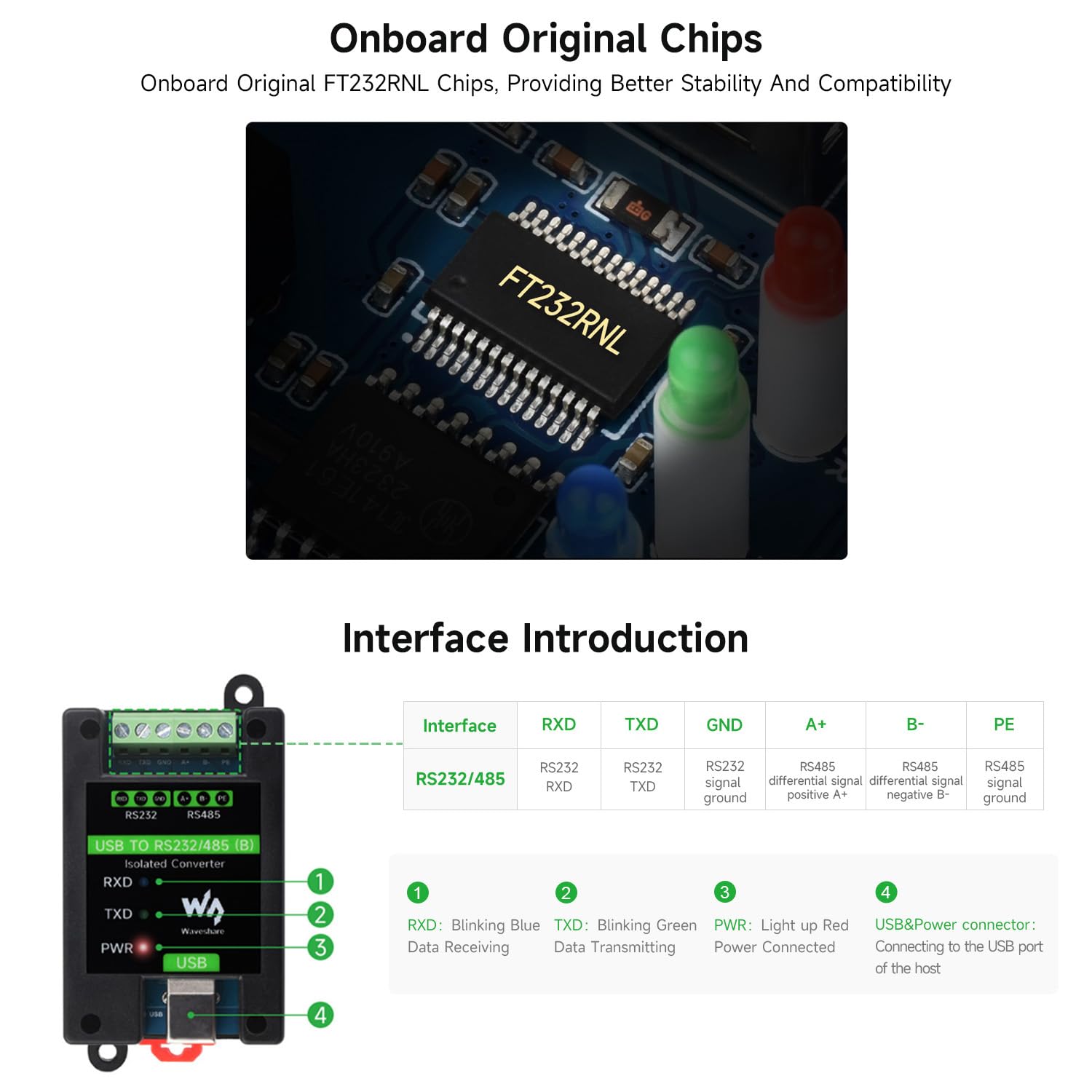

- Onboard original FT232RNL chip. Fast communication, stable and reliable, better compatibility. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

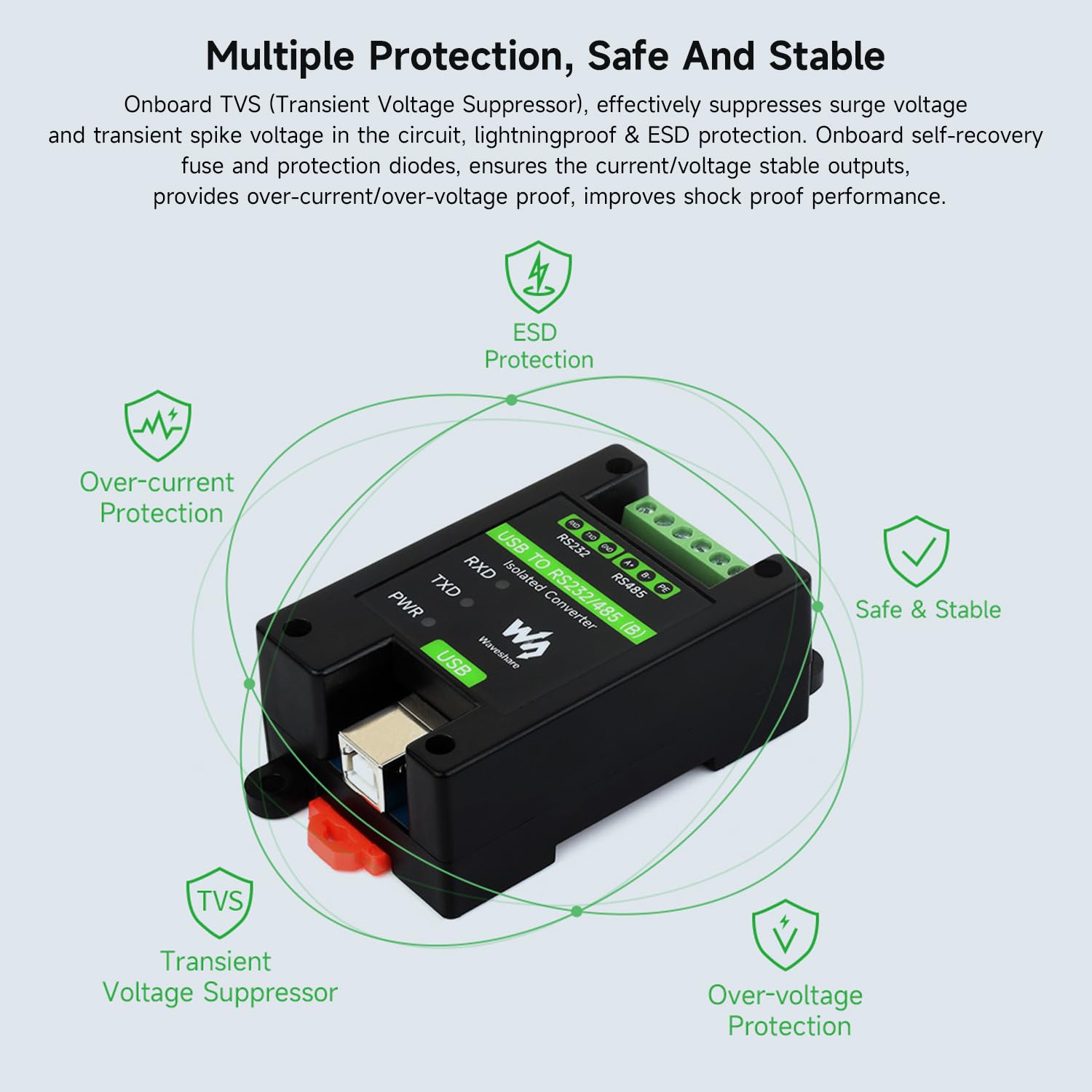

- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- 3 LEDs for indicating the power and transceiver status. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
